Microphone line mixer, 6 mono channels + 3 stereo channels

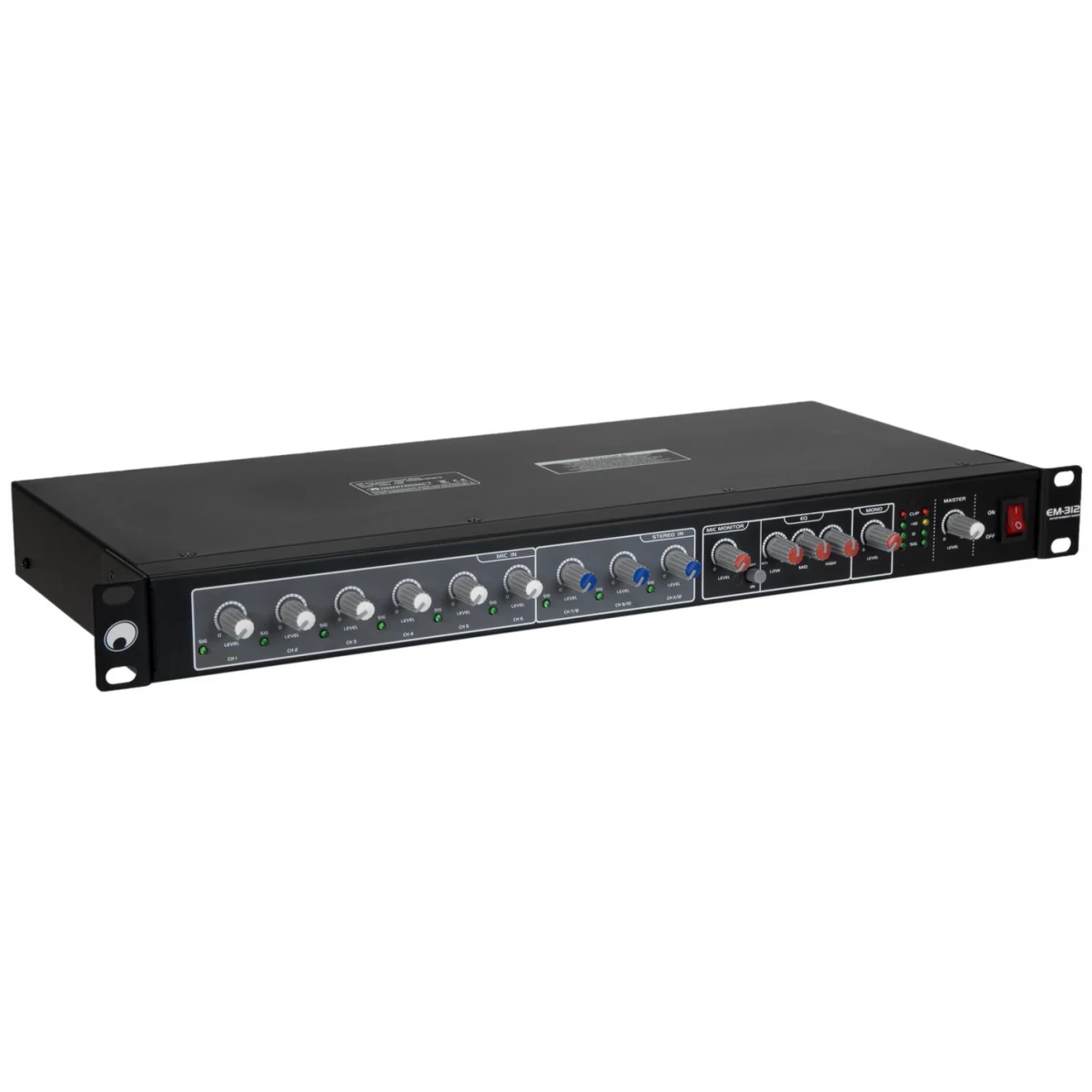

The EM-312 is a slim rack-mounted 12-channel mixer with 6 mic/line combo inputs and 6 additional line inputs. It has XLR outputs, a 6.3 mm mono output, a stereo RCA recording output, and a 6.3 mm monitoring output for the mic section. The EM-312 offers separate volume controls for all inputs in addition to volume control for the mono output and a master volume control. It has a 3-band equalizer and an adjustable priority function for microphone announcements through channel 1.
- 6 mono mic/line input channels (combo jack), switchable
- 3 stereo line input channels (RCA)
- Phantom power can be switched on for each microphone input
- All input channels with separate level controls and signal LED
- Adjustable priority circuit for channel 1
- Balanced stereo XLR outputs and RCA outputs
- Adjustable monitor output (6.3 mm jack) for monitoring the microphone signals
- Adjustable mono line output (6.3 mm jack)
- Master level control, 4-digit stereo LED level meter and 3-band equalizer
- Additional screw terminals for 24 V DC power input
- Incl. mounting brackets for 483 mm rack installation (1 U)
- (19") 48.3 cm rack installation 1 U
Manuals
Manuals| Power supply | 230 V AC, 50 Hz |
| Or | |
| 24 V DC | |
| Power consumption | 12 W |
| Protection class | Class I |
| Power connection | Mains input IEC connector (M) mounting version Power supply cord with safety plug |
| Mains input screw terminal | |
| Frequency range | 20 - 22000 Hz |
| S/N ratio | >103 dB |
| THD | <0,03 % at 1 kHz |
| Phantom power | 18 V DC or 21 V DC |
| Impedance | Input mic/line:1,4 kOhm |
| Input line | 10 kOhm |
| Output 120 Ohm | |
| Control elements | Power switch |
| Status LED | Signal, master level meter, clip, power |
| Connections | Input:6 x mic/line via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| Input | 3 x line via stereo RCA |
| Output | 2 x master via 3-pin XLR |
| Output | 1 x mono via 6.3 mm jack socket (mono) mounting version |
| Output | 1 x line via 6.3 mm jack socket (mono) mounting version |
| Output | 1 x rec. via stereo RCA |
| Chanals | Input chanel:6 x mono with Mic-line switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz |
| Input chanel | 3 x stereo via RCA, channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz |
| Master output | 1 x stereo via XLR, channel control via Rotary dial |
| Master output | 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial |
| Max. level | Input:Microphone -19 dBu |
| Input | line +21 dBu |
| Output | +21 dBu |
| Housing design | (19") 48.3 cm rack installation 1 U |
| Dimensions | Width:48,3 cm |
| Depth | 23 cm |
| Height | 4,45 cm |
| Weight | 3,04 kg |
